Description
Basic Info
| Item | Value | Item | Value |
|---|---|---|---|
| Model NO. | peek | Standard Parts | Yes |
| Universal | Yes | Type | Bushing |
| Material | Plastic | Transport Package | According to Customer Needs |
| Specification | RoHS | Origin | Guangdong, China (Mainland) |
| Production Capacity | 100000 |
Product Parameters
| roperty | Item No. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 | |
| Mechanical Properties | 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption(23ºC in air) | % | 0.20 | 0.14 | 0.14 | |
| 3 | Tensile strength | MPa | 110 | 130 | 90 | |
| 4 | Tensile strain at break | % | 20 | 5 | 5 | |
| 5 | Compressive stress(at 2%nominal strain) | MPa | 57 | 97 | 81 | |
| 6 | Charpy impact strength (unnotched) | KJ/m2 | No break | 35 | 35 | |
| 7 | Charpy impact strength (notched) | KJ/m2 | 3.5 | 4 | 4 | |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6200 | |
| 9 | Ball indentation hardness | N2 | 230 | 350 | 270 | |
| 10 | Rockwell hardness | — | M105 | M102 | M99 | |

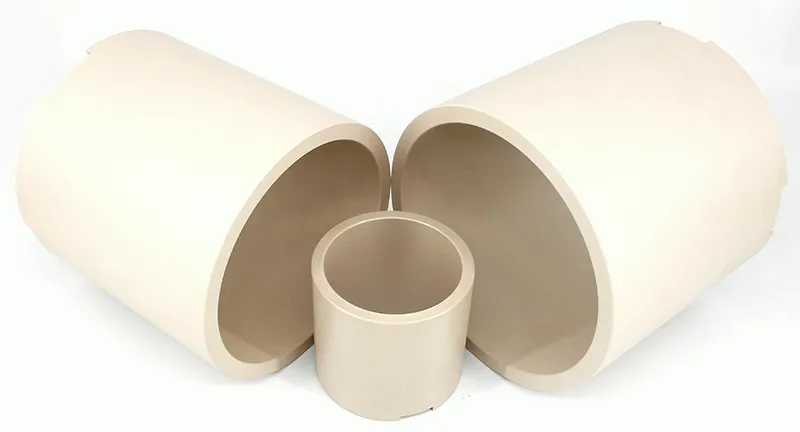

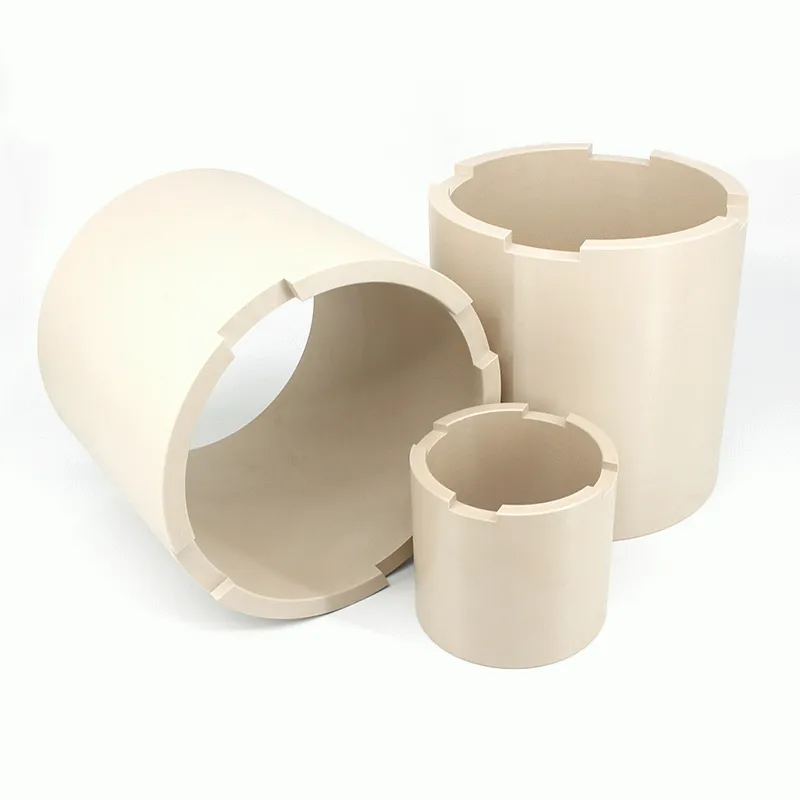

Supply Wear-Resistant Oil-Impregnated PEEK Bushings
PEEK (Polyetheretherketone) is a high-performance engineering plastic renowned for its exceptional mechanical strength, high-temperature resistance, and chemical durability, making it ideal for manufacturing mechanical components in demanding environments. These wear-resistant, oil-impregnated PEEK bushings are crafted using an oil-infusion process, enabling outstanding sliding performance and a low friction coefficient even without external lubrication. They are a superior alternative to metal bushings and traditional plastic bearings, significantly extending equipment lifespan.
Features of Wear-Resistant Oil-Impregnated PEEK Bushings
Advanced Oil-Impregnated Micro-Pore Structure
The wear-resistant PEEK bushings feature a unique micro-porous design, with fine oil pores evenly distributed within the PEEK matrix. During operation, lubricant gradually seeps out, providing long-lasting self-lubrication. This reduces the need for manual lubrication, lowers maintenance costs, and minimizes friction heat and energy consumption. Compared to traditional plastic bushings, these bushings offer significantly enhanced wear resistance, maintaining stable performance under dry friction, high-speed, or high-temperature conditions.
Superior Mechanical and Thermal Properties
PEEK, a high-performance engineering plastic, delivers exceptional mechanical strength and thermal stability, allowing continuous operation at temperatures up to 250°C without deformation. Its outstanding dimensional accuracy and structural integrity remain intact even under high loads and high-speed environments, making it a reliable choice for engineering plastic bushings.
Excellent Chemical Resistance
PEEK exhibits remarkable resistance to acids, alkalis, oils, and various solvents, ensuring durability in harsh chemical environments. This makes these plastic bushings ideal for applications in industries such as petrochemical, aerospace, medical, and food processing equipment.
Lightweight and Durable Alternative
Combining lightweight design with superior durability, these PEEK bushings effectively replace metal bushings, offering smoother and more energy-efficient operation. They provide a reliable, high-performance solution for advanced equipment, enhancing both longevity and efficiency in demanding industrial applications.
Applications of Wear-Resistant Oil-Impregnated PEEK Bushings
With their exceptional mechanical strength, wear resistance, and self-lubricating properties, wear-resistant oil-impregnated PEEK bushings are widely used in industrial equipment requiring high stability and low maintenance. Their oil-infused structure ensures consistent lubrication during prolonged operation, making them ideal for frequent use and high-load conditions.
- Petrochemical and Chemical Equipment: PEEK bushings resist corrosion from acids, alkalis, and chemical solvents, ensuring reliable long-term performance in pump valves, mixing shafts, and sealing systems.
- Automotive and Machinery Manufacturing: Capable of withstanding high speeds and impact loads, these bushings are commonly used in transmission systems, braking mechanisms, and suspension components, reducing wear on metal parts.
- Aerospace and Medical Equipment: Their lightweight design and high cleanliness enhance performance and safety in precision applications.
- Food Processing and Packaging Machinery: With high-temperature resistance and non-contaminating properties, PEEK bushings are an ideal choice for bearings and guide components in these industries.
Thanks to their stable performance and extended lifespan, engineering plastic bushings serve as a reliable alternative to metal bushings, delivering efficient operational solutions. They represent a trusted choice for modern industrial applications as high-performance plastic bushings.
Environmental and Economic Benefits of Product
The oil-impregnated PEEK bushings operate throughout their entire service life without the need for additional lubrication. The internal oil reserves are gradually released during operation, providing long-lasting lubrication and consistent performance. This design greatly reduces grease consumption and manual maintenance while preventing oil leakage and environmental pollution, aligning perfectly with modern industrial goals of energy efficiency and sustainability.
Over long-term use, the product demonstrates excellent stability and durability, significantly extending equipment lifespan and reducing replacement frequency. For manufacturers, this translates into lower maintenance costs and higher operational efficiency. Compared with conventional plastic bushing, its self-lubricating nature minimizes downtime for maintenance, offering clear economic advantages.
With superior material properties and an environmentally friendly design, engineering plastic bushings contribute to greener production practices while improving energy efficiency and cost control—making them a reliable and sustainable plastic bushins solution for modern industrial applications.
Customer Reviews
⭐⭐⭐⭐⭐ Alex Johnson, Maintenance Supervisor, PrecisionTech Engineering, USA
We’ve been using the Supply Wear-Resistant Oil-Impregnated PEEK Bushings in our high-speed molding equipment for several months, and the performance has been outstanding. The bushings run smoothly with almost no need for lubrication, and we’ve noticed a clear drop in friction and wear. They’ve proven durable even under constant heat and load. A solid product that saves both time and maintenance costs.
⭐⭐⭐⭐⭐ Hiroshi Tanaka, Equipment Engineer, Nissho Robotics, Japan
These bushings are extremely reliable. We installed them in robotic arms that operate continuously, and they’ve maintained excellent precision with minimal noise. The oil-impregnated design really makes a difference — no more frequent lubrication or part replacements. For us, it’s been a great solution for improving long-term performance and efficiency.
⭐⭐⭐⭐⭐ Sophie Müller, Production Manager, EuroMach Systems, Germany
The Oil-Impregnated PEEK Bushings have worked perfectly in our packaging line. They handle high-speed motion and frequent start-stops without any sign of wear. The engineering quality is impressive, and installation was simple. After switching from standard plastic bushings, we’ve seen less vibration and smoother operation.
⭐⭐⭐⭐⭐ Daniel Oliveira, Operations Director, MetalForm Industrial, Brazil
We use these bushings in our heavy-duty forming machines, and they’ve performed above expectations. Even with high pressure and temperature, the wear resistance is excellent. No lubrication required, no downtime — just consistent performance. A bit pricier than traditional options, but the lifespan and stability make them a great investment.
FAQ
What are the main advantages of using oil-impregnated PEEK bushings?
These bushings provide long-lasting self-lubrication, excellent wear resistance, and high load-bearing capacity. They reduce maintenance frequency and are ideal for environments where external lubrication is difficult or undesirable.
Can PEEK bushings replace metal bushings in heavy-duty applications?
Yes. Thanks to their high strength, heat resistance up to 250°C, and chemical stability, PEEK bushings can effectively replace metal bushings in demanding applications while offering lower weight and maintenance costs.
Are these bushings suitable for food or medical equipment?
Absolutely. PEEK material is non-toxic, corrosion-resistant, and stable at high temperatures, making it suitable for hygienic and precision environments such as food processing and medical machinery.
How long do oil-impregnated PEEK bushings typically last?
Service life depends on operating conditions, but compared to conventional plastic bushings, these offer significantly extended durability—often lasting several times longer under high-speed, high-temperature, or corrosive environments.
